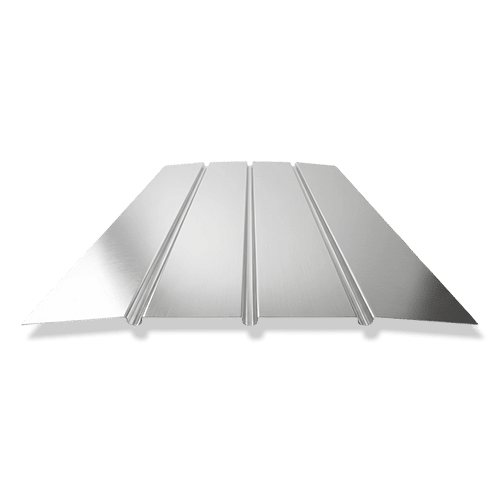

The Komfort Fit From Above 590mm Triple Grooved Plated System is designed for suspended floor systems and are fitted on top of floor joists or battens at the 600mm centres (should the joist spaces vary slightly, this usually can be overcome on site). The triple groove UFH spreader plates have preformed channels with pipe centres of 150mm, the underfloor heating triple grove spreader plate can be nailed, screwed or stapled onto the top of the floor joist or floor batten.
TECHNICAL DATA
- Output Up to 77W/m2
- 150mm Pipe CC
- L1000 x W590 x D16
- Thickness 0.5mm
- Suitable for 15 & 16mm UFH Pipe
- Fixed with Stapler
Product code: PLG3-590-150
