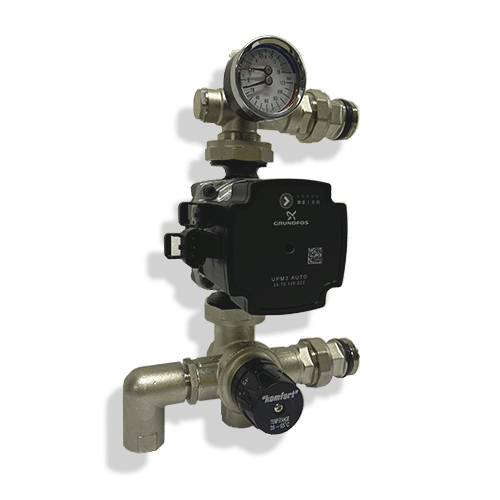

Introducing the Komfort Komix2 Underfloor Heating Mixing Valve Unit with a choice of 3 UFH pumps; the Grundfos UPM3 FLEX AS, UPM3 Auto and WILO PARA, expertly designed for efficient underfloor heating. Operating at temperatures between 35 to 60°Ctailored to your specific floor construction and building requirementsthis pump station features a state-of-the-art KomMix blending valve. The KomMix seamlessly blends cooler water returning from the underfloor system with hot water from your heat source, ensuring optimal temperature delivery to the underfloor pipework for maximum comfort and efficiency. Experience the perfect balance of warmth and energy savings with our Komfort Mixing Valve Unit.
TECHNICAL DATA
- Hot temperature supply range: 60°C 85°C
- Adjustable temperature range: 35°C 60°C
- Maximum supply pressure: 10 Bar
- Factory pre-set: 45°C (Control knob is in the adjustable position)
- Temperature stability: /- 3°C
- Kvs Value: 2.24 m³/h
- Connections: Mixing valve inlets 3/4 FBSP | Manifold connections 1 MBSP
- 210mm Centres
- Warranty: 6 Years for Mixing Valve
