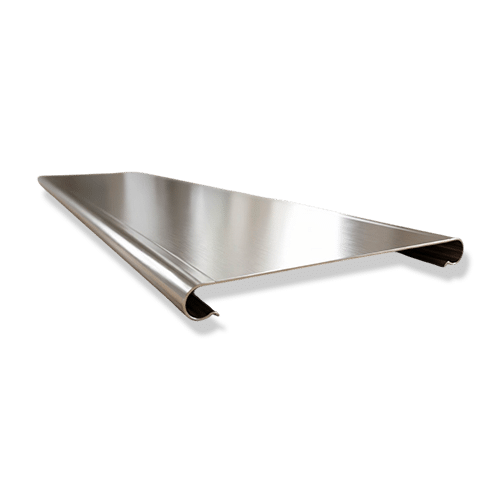

The Komfort Fit From Below FFB Double Spreader Plate, fit from below (FFB) aluminium spreader plates, the FFB double spreader plate system is designed to be installed from underneath the already fitted floor boards are already installed and underfloor heating is required. The fit from below aluminium ( FFB) double heat spreader plate is designed for joist from 300mm to 600mm centres, making them ideal for use with Heat Pumps where closer pipe centres are required.
TECHNICAL DATA
- Output Up to 77W/m2
- 180mm Pipe CC
- L1000 x W180 x D16
- Thickness 0.7mm
- Suitable for 15 & 16mm UFH Pipe
- Fixed with Stapler
