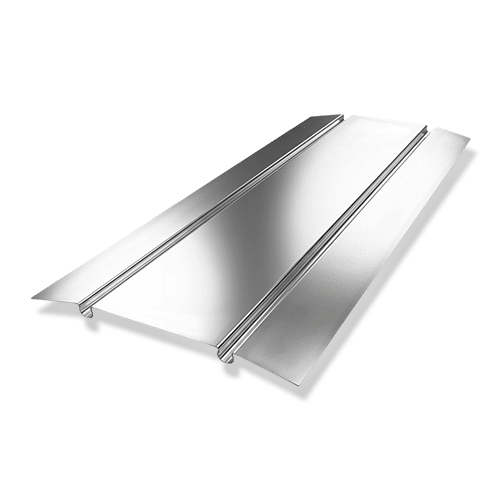

The Komfort Fit From Above Double Grooved Plated System is designed to be used with suspended joists or raised batten floors, where the aluminium diffusion plate is fitted directly on the top of floor joists at 400mm centres. Each plate is 1000mm long and has two preformed groves at 200mm pipe centres in which to carry the heating pipe. Insulation should be fitted beneath the plate to reduced downward heat loss. The flooring is fixed as normal directly on to the plates to the joists.
TECHNICAL DATA
- Output Up tto 77W/m2
- 200mm Pipe CC
- L1000 x W390 x D16
- Thickness 0.5mm
- Suitable for 15 & 16mm UFH Pipe
- Fixed with Stapler
Product code: PLG2-390
