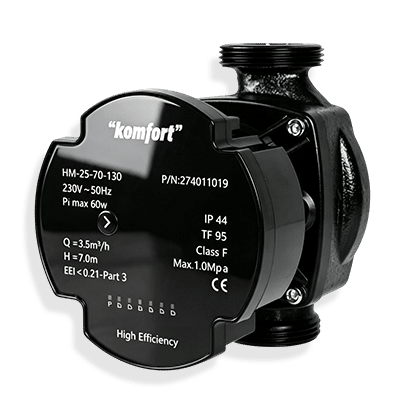

Komfort A-MATIC 25/70 130mm Pump is designed specifically for underfloor heating. This variable frequency circulation pump controller system is designed for flexible, efficient operation, with support for both user interface control and external low-voltage PWM signal control. Using FOC (Field Oriented Control) technology, it can drive a three-phase DC brushless motor and automatically identify the required motor parameters, delivering accurate feedback on flux, flux angle, motor shaft speed and torque. It also features offline motor parameter identification, so no datasheet is required.
Connections 130mm x 1″ 1/2 BSP Thread ~ n.b. BSP sizes don’t match up with what you measure on the scale of a ruler (1″ 1/2 BSP =47.80 mm)
BENEFITS
- Standalone OEM high efficiency circulator
- For standalone applications
- Optimal for floor heating with a high valve authority
- Flexibility of settings benefits the OEM production and the installation in the field
- Internally controlled circulators
- 6 control modes
- 10 Curves
TECHNICAL DATA
- Max.flow: 3.8m³/h
- Max head: 7m
- Voltage/ Frequency: 220~240V 50HZ
- Pump housing: Cast iron
- Pumped liquid: Water
- Insulation class: F
- Degree of Protection: IP44
- Liquid temperature range: 2~+95℃
- Max System Pressure: 1 MPa
- Cast iron connections: 1 1/2″ ~ n.b. BSP sizes don’t match up with what you measure on the scale of a ruler (1″ 1/2 BSP =47.80 mm)
- Power cable included.
- PWM Cable included.
- 3 Year Warranty.
Product code: PUBKOAM
